What is the thermal resolution of the RD69 traffic camera?

The RD69 features a high-resolution uncooled VOx thermal detector with options of 400x300 or 640x512 pixels, with 17μm pixel size for excellent image clarity.

Can the RD69 camera pan 360 degrees continuously?

Yes, the RD69 supports 0° to 360° continuous horizontal rotation with speeds from 0.1° to 60° per second for complete area coverage.

Does the RD69 support automatic number plate recognition?

Yes, the 1920x1080 high-performance CMOS sensor combined with the 30-150mm electrical zoom lens makes it ideal for ANPR applications and vehicle identification.

RD69 Road Traffic Camera | RDT696C | Macnel Trading Enterprise

Name: RD69 Road Traffic Camera
Brand: RD
SKU: RDT696C
Price: 48950.00 ZAR
Availability: InStock
Rating: 4.8 (45 reviews)

RD69 Road Traffic Camera | Model: RDT696C

🚦 Next-Generation Traffic Enforcement & Monitoring Solution

The RD69 Road Traffic Camera (Part No: RDT696C) is a professional-grade traffic surveillance system designed for municipalities, law enforcement agencies, and traffic management centers. Combining advanced uncooled VOx thermal imaging with a high-definition visible camera, this PTZ system delivers 24/7 monitoring capability in all weather conditions — day or night, rain or fog.

📩 Request a Quote 📞 Call Sales: +27 65 886 1993

RD69 Road Traffic Camera Main Unit - Thermal PTZ Traffic Camera

🌡️

Dual Sensor Technology

Uncooled VOx thermal detector (640x512) + 1920x1080 CMOS visible sensor for comprehensive monitoring in any condition.

🔄

360° Continuous PTZ

Full 360° horizontal rotation with variable speed (0.1°-60°/s) and -60° to +30° vertical tilt for complete area coverage.

🔍

30-150mm Electrical Zoom

Motorized zoom lens with speed-varying focus for clear identification of vehicles and license plates at long distances.

📷

ANPR & Speed Ready

Designed for automatic number plate recognition and speed enforcement integration — ideal for traffic law enforcement.

📋 Technical Specifications — RD69 Road Traffic Camera

🔴 Thermal Imaging Module

Sensor Type: Uncooled FPA VOx Detector
Resolution: 400x300 / 640x512 pixels
Pixel Size: 17μm
Spectrum Range: 8~14μm
Focal Length: 30~150mm (Electrical zoom & focus)
Speed Varying While Zoom: Supported

🔵 PTZ & Visible Camera Module

Horizontal Angle: 0°~360° continuously
Horizontal Speed: 0.1°~60°/s
Vertical Angle: -60°~+30°
Vertical Speed: 0.1°~30°/s
Visible Resolution: 1920×1080 (Full HD)
Visible Sensor: 1/3" High-performance CMOS

📸 RD69 Road Traffic Camera Gallery

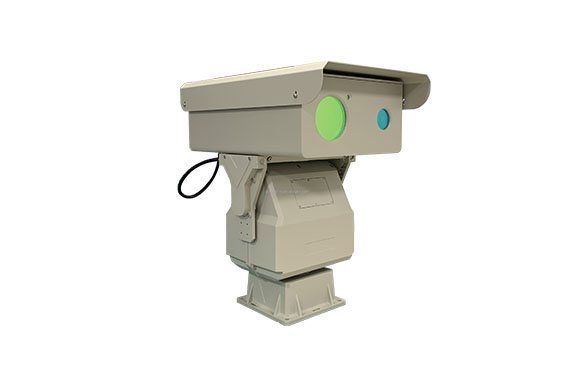

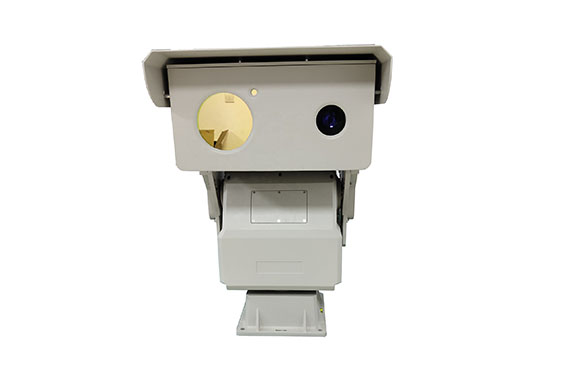

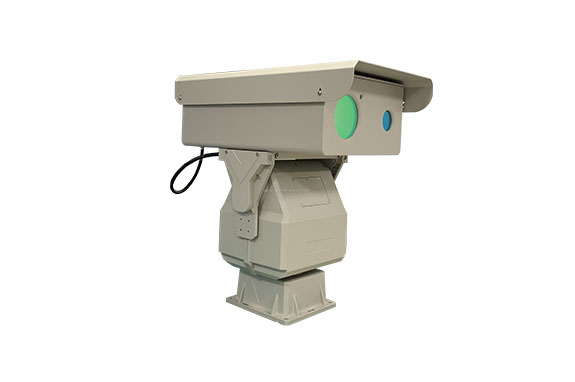

RD69 Road Traffic Camera Front View - Thermal PTZ Camera

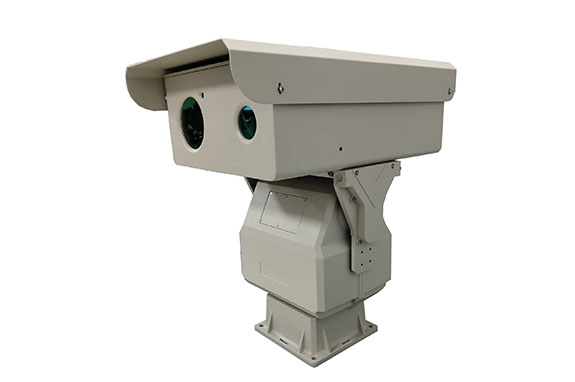

RD69 Traffic Camera Side View - PTZ Mechanism

RD69 Road Traffic Camera Installation Example on Highway

RD69 Thermal Traffic Camera Monitoring Vehicles at Night

🚔 Where Can You Deploy the RD69 Traffic Camera?

The RD69 is the ultimate solution for various traffic management and security applications across South Africa:

Highway speed enforcement
Intersection traffic monitoring
Toll gate ANPR systems

Border control & security
School zone safety monitoring
Parking lot surveillance

Event traffic management
City-wide CCTV integration
Construction site vehicle tracking

❓ Frequently Asked Questions About RD69 Traffic Camera

What makes the RD69 different from standard security cameras?

The RD69 combines a high-resolution thermal imager (640x512) with a Full HD visible camera, enabling 24/7 monitoring in complete darkness, fog, rain, and glare. Standard cameras cannot provide thermal imaging for night-time vehicle detection.

Can the RD69 read license plates at highway speeds?

Yes. The 1920x1080 visible sensor combined with the 30-150mm electrical zoom lens allows clear plate capture at significant distances. When integrated with ANPR software, it can process vehicles traveling at highway speeds.

Is the RD69 weatherproof for outdoor installation?

Absolutely. The RD69 is built with IP66-rated weatherproof housing, designed to withstand rain, dust, and extreme temperatures — perfect for South African road conditions.

What is the maximum range of the thermal camera?

With the 30-150mm zoom lens, the thermal camera can detect vehicles up to 3-5km away depending on conditions. Vehicle recognition is possible at 1-2km range.

Does Macnel Trading offer installation and training?

Yes! We provide professional installation services and operator training for all our traffic camera systems. Contact our sales team for a customized quote including deployment and support.

What warranty comes with the RD69 camera?

All RD69 Road Traffic Cameras include a 12-month manufacturer's warranty covering hardware defects. Extended warranty options are available upon request.

🚀 Upgrade Your Traffic Enforcement Capabilities Today

Contact Macnel Trading Enterprise for the RD69 Road Traffic Camera (RDT696C) — South Africa's trusted supplier of traffic management solutions.
